Pitot tubes anemometers
Category:
Airflow meters
We sell pitot tube complete sets and also pitot tubes only. Mostly in stock now.
Category:
Pitot tubes anemometers
Product Description 1.Larger LCD display with backlight. 2.Relative time clock on MAX MIN and AVG provides a time reference for measurement. 3.Pressure, velocity or air flow measurement provides Zero Adjust. 4.Display pressure, Air velocity or air flow plus environment 5.Temperature simultaneously. 6.Easy to calculate the area of a rectangular or circular duct. 7.USB interface, USB to UART Bridge Controller.. 8.Low battery indication, and Auto Power Off mode (Sleep mode) increases. Specifications: Manometer Accuracy ±0.3%FSO (25°C) Repeatability ±0.2% (Max.±0.5% FSO) Linearity/Hysteresis ±0.29% FSO Pressure Range ±5000Pa Maximum Pressure 10psi Response Time 0.5 Seconds typical Over range Indicator OL Under range Indicator -OL Units Range Resolution PSI 0.7252 0.0001 mbar 50.00 0.01 inH2O 20.07 0.01 mmH2O 509.8 0.1 Pa 5000 1 Air...
Category:
F-Shape Pitot Tubes (Prandtl)

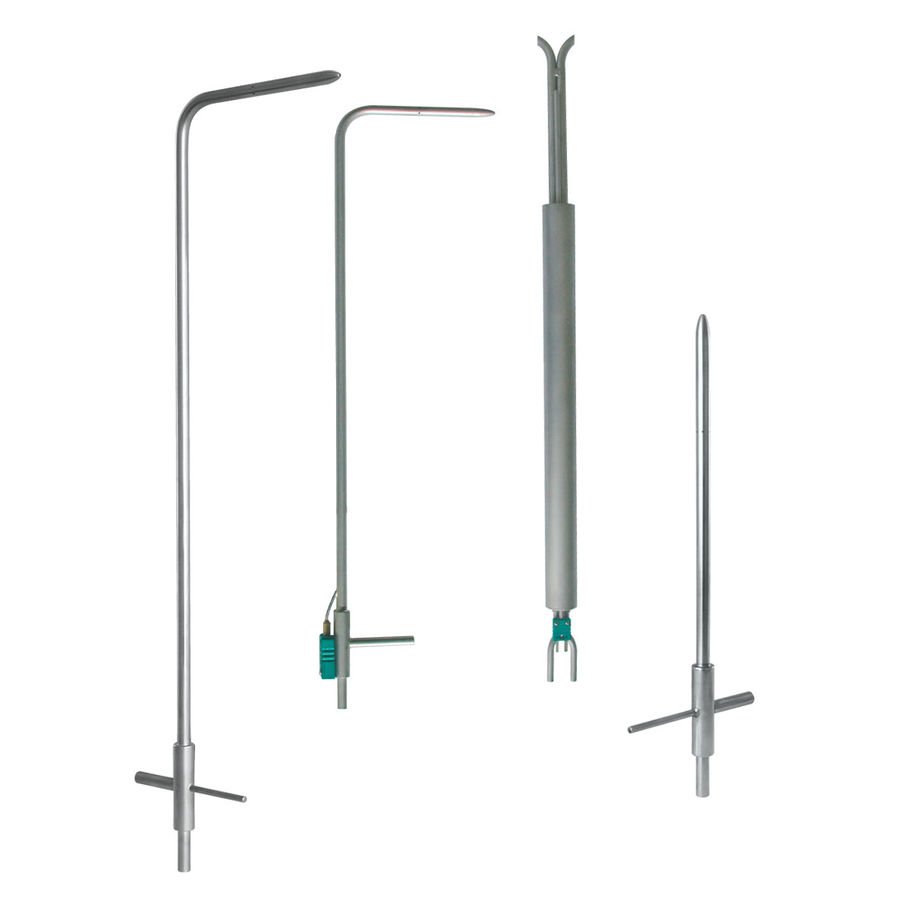

The SERIES F Shape Stainless Steel Pitot Tube is constructed from corrosion resistant stainless steel with permanently etched insertion depth graduations for a lifetime of service. The static pressure port is parallel to the sensing tube to allow quick, easy alignment of the tube with air flow. A universal model fits the user supplied 3/4" schedule 40 pipe in any length. Model Description DWY001-160-12 Stainless steel Pitot tube, 5/16" 8mm dia., 12-5/8" 35cm insertion length. DWY002-160-18 Stainless steel Pitot tube, 5/16" 8mm dia., 18-5/8" 50cm insertion length. DWY003-160-24 Stainless steel Pitot tube, 5/16" 8mm dia., 24-5/8" 65cm insertion length. DWY004-160-36 Stainless steel Pitot tube, 5/16" 8mm dia., 36-5/8" 100cm insertion length. DWY005-160-48 Stainless steel Pitot tube, 5/16" 8mm dia., 48-5/8" 125cm insertion length. DWY006-160-60 Stainless steel Pitot tube, 5/16" 8mm dia., 60-5/8" 155cm insertion length. DWY007-160-8 Stainless steel Pitot tube, 5/16" 8mm dia., 8-5/8" 23cm insertion length. DWY008-160-KIT Kit containing 160-18, 160-24, 160-36, 160-48, and FREE carrying case ($150...
Category:
F-Shape Pitot Tubes (Prandtl)
Straight Design, Accurate Positioning These Straight Stainless Steel Pitot Tube is constructed from corrosion resistant stainless steel with permanently etched insertion depth graduations for a lifetime of service. The static pressure port is parallel to the sensing tube to allow quick, easy alignment of the tube with air flow. The straight design allows for easy insertion into ducts through grills and pressure taps, as well as aids in positioning in hard to reach locations where a hook style Pitot tube may not allow access. Product Applications Monitor or control air velocity or air flow when combined with differential pressure gage, switch, or transmitter where hook style Pitot tubes don’t allow access Model Description DWY009-160F Straight stainless steel pitot tube, 18" 50cm DWY010-160F-24 Straight stainless steel pitot tube, 24" 65cm DWY011-160F-36 Straight stainless steel pitot tube, 36" 100cm DWY012-160F-48 Straight stainless steel pitot tube, 48" 125cm DWY013-160F-60 Straight stainless steel pitot tube, 60" 155cm DWY014-160F-KIT Kit containing 160F, 160F-24, 160F-36, 160F-48, and FREE carrying...
