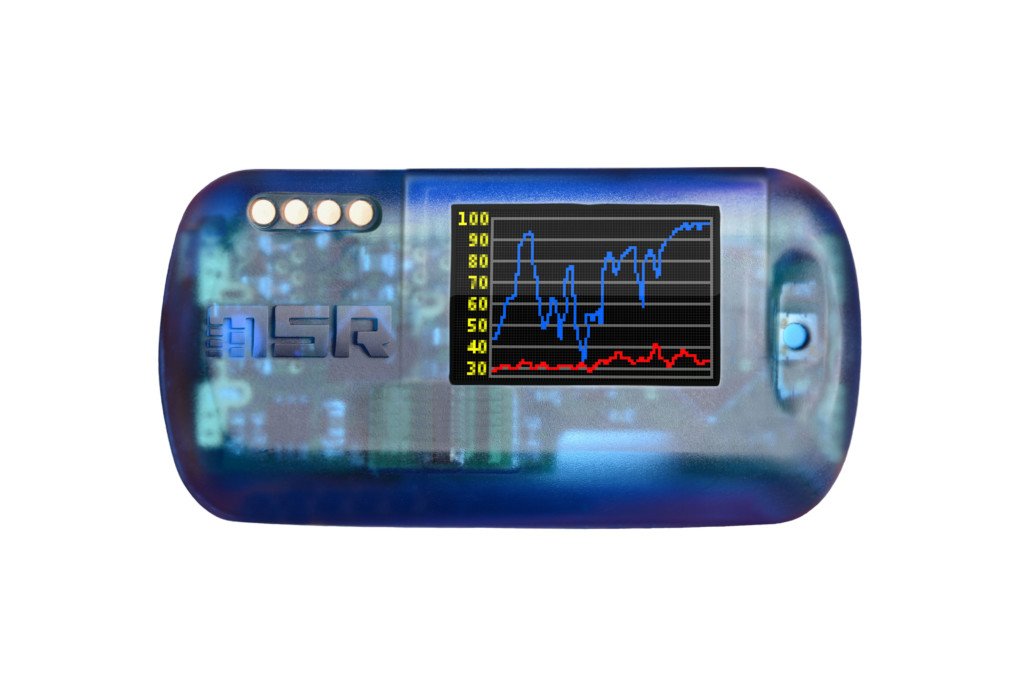

MSR145W2D WiFI Wireless Data Logger
Please open the Configurator tab to choose your desired options.
- Measures and Records Temperature, Humidity, Light, Pressure (Air and Fluid), Acceleration and Light Simultaneously
- Recorded Readings are Sent to Online MSR SmartCloud or Stored onto Internal Non-Volatile Memory
- Built-in Bluetooth for Transmitting Data to MSR SmartCloud for Review and Analysis
- View Data on Any Device (Phone, Tablet or Computer) Using Browser
- OLED Display Shows Graphical History or Data of Recorded Readings
- Lithium Polymer Battery is Recharged by Using USB Cable (Included) and PC Computer
- Data from any number of loggers can be merged synchronously into a single Data Record
- Made in Switzerland, Swiss Made
Includes Software CD, USB Cable and Access to MSR SmartCloud
6. General technical data of the MSR145W2D.
Memory capacity: | Over 1 000 000 measured values. | |
Key button: | With the button you can activate and deactivate the display, the WiFi-module and the data recording. |
|
LED: | ||
Blue: Red: Yellow: |
Record indicator Alarm indicator Battery charge indicator |
|
Power supply: | Lithium-polymer battery, rechargeable via the USB connection | |
OLED display: | High-contrast, brilliant OLED (organic light-emitting diode) colour display to show data and graphical charts, resolution 96 x 64 pixels. |
|
Interface: | USB, WLAN (WiFi) | |
Operation conditions: | ||
Temperature: | -20...+65 °C | |
Storage conditions: | ||
Temperature: Humidity: |
+5...+45 °C (ideal storage conditions for the battery) 10...95 % relative humidity, non-condensing |
|
Standards: | The MSR145W2D complies with EU-Directives RoHS/WEEE |
MSR145W2D WiFi Wireless Data Logger Specifications
Measured Parameters | Temperature Relative Humidity (RH) with Integrated Temperature Air Pressure with Integrated Temperatureration (ie. Determining Position) Light |
Temperature | Range: -20°C to 65°C Accuracy: ±0.2°C (-10°C to 50°C); ±1.0°C (-40°C to 125°C) Note: Available in C Only. |
Humidity | Range: 0 to 100% RH @ -20°C to 65°C Accuracy: ±1.8% (10 to 85% RH); ±4% (85 to 95% RH) |
Air Pressure | Range: 0 to 2000 mbar Absolute @ -20°C to 65°C Accuracy: ±2 mbar (750 to 1100 mbar Absolute, 25°C) |
Acceleration | Range: ±15g @ -20°C to 65°C Accuracy: ±0.15G @ 25°C |
Light | Range: 0 to 65,000 lx Accuracy: 100 to 65,000 lx, Max ±5% Linearity Error, Max Sensitivity at 500 nm |
Bluetooth | Type: Bluetooth 4.0 Smart Frequency: 2.4 GHz Radio Range: Approximately 10 Meters Note: Communication with Multiple Data Loggers at the Same Time |
Sampling Rate | 1 Second to 12 Hours |
Data Storage Capacity | Approximately 1 Million Total Readings |
Display | Type: High Contrast OLED (Organic Light-Emitting Diode) Resolution: 96 x 64 pixels Display Area: 22.14 mm x 15.42mm Fast Response Time: <10 µs Wide Viewing Angle:>160° |
Alarms | None |
LEDs | Blue: Recording Indicator Red: Alarm Indicator Yellow: Battery Charge Indicator |
Power Supply | Rechargeable Lithium Polymer Battery (260mAh or 900mAh) (USB Connection to PC Recharges Unit) |
Battery Life | 2-3 Months (Sampling Rate: 1 Minute) |
Operating Mode | Push Button Start/Stop |
Storage Conditions | Temperature: 5°C to 45°C Humidity: 10 to 95% RH, non-condensing |
Enclosure | Poly Carbonate (Waterproof Version is Encapsulated) |
Media | Air and Various Liquids (Waterproof Version) |
Standards Compliance | RoHS/WEEE |
Software Compatible | Desktop: Windows 10, 8, 7, Vista and XP App: Android 4.4+, iPhone 4S+, iPad 3+ NOTE: Not Compatible with iOS 9.X at this Time |
Dimensions | 260mAh Battery Version: 57mm x 35mm x 17mm 900mAh Battery Version: 57mm x 35mm x 25mm |
Weight | Standard 260mAh Battery Version: 27 grams Standard 900mAh Battery Version: 43 grams Waterproof 260 mAh Version: 36 grams Waterproof 900 mAh Version: 62 grams |
