MSR145WD Wireless Data Logger and Recorder with Bluetooth Communications Malaysia

Category: MSR Dataloggers



MSR145W2D WiFI Wireless Data Logger

MSR145W2D

Please open the Configurator tab to choose your desired options.

  • Measures and Records Temperature, Humidity, Light, Pressure (Air and Fluid), Acceleration and Light Simultaneously
  • Recorded Readings are Sent to Online MSR SmartCloud or Stored onto Internal Non-Volatile Memory
  • Built-in Bluetooth for Transmitting Data to MSR SmartCloud for Review and Analysis
  • View Data on Any Device (Phone, Tablet or Computer) Using Browser

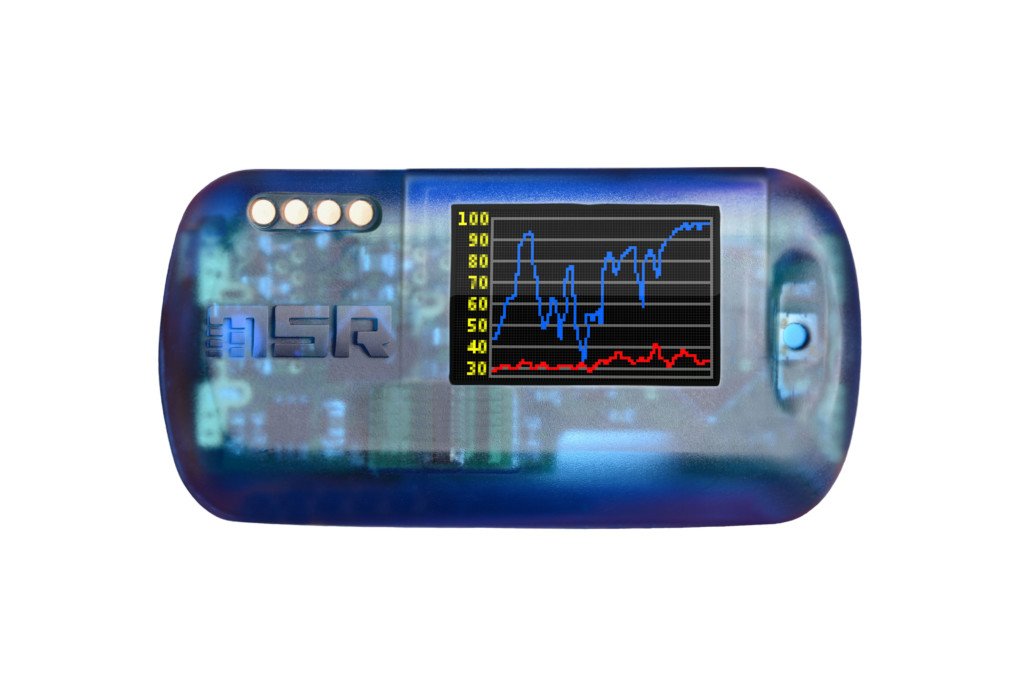

  • OLED Display Shows Graphical History or Data of Recorded Readings
  • Lithium Polymer Battery is Recharged by Using USB Cable (Included) and PC Computer
  • Data from any number of loggers can be merged synchronously into a single Data Record
  • Made in Switzerland, Swiss Made Swiss Made - Made in Switzerland

Includes Software CD, USB Cable and Access to MSR SmartCloud





6. General technical data of the MSR145W2D.

Memory capacity: Over 1 000 000 measured values.
Key button: With the button you can activate and deactivate the
display, the WiFi-module and the data recording.
LED:
Blue:
Red:
Yellow:
Record indicator
Alarm indicator
Battery charge indicator
Power supply: Lithium-polymer battery, rechargeable via the USB connection
OLED display: High-contrast, brilliant OLED (organic light-emitting diode) colour display
to show data and graphical charts, resolution 96 x 64 pixels.
Interface: USB, WLAN (WiFi)
Operation conditions:
Temperature: -20...+65 °C
Storage conditions:
Temperature:
Humidity:
+5...+45 °C (ideal storage conditions for the battery)
10...95 % relative humidity, non-condensing
Standards: The MSR145W2D complies with EU-Directives RoHS/WEEE



MSR145W2D WiFi Wireless Data Logger Specifications

Measured Parameters Temperature
Relative Humidity (RH) with Integrated Temperature
Air Pressure with Integrated Temperatureration (ie. Determining Position)
Light
Temperature Range: -20°C to 65°C
Accuracy: ±0.2°C (-10°C to 50°C); ±1.0°C (-40°C to 125°C)
Note: Available in C Only.
Humidity Range: 0 to 100% RH @ -20°C to 65°C
Accuracy: ±1.8% (10 to 85% RH); ±4% (85 to 95% RH)
Air Pressure Range: 0 to 2000 mbar Absolute @ -20°C to 65°C
Accuracy: ±2 mbar (750 to 1100 mbar Absolute, 25°C)
Acceleration Range: ±15g @ -20°C to 65°C
Accuracy: ±0.15G @ 25°C
Light Range: 0 to 65,000 lx
Accuracy: 100 to 65,000 lx, Max ±5% Linearity Error, Max Sensitivity at 500 nm
Bluetooth Type: Bluetooth 4.0 Smart
Frequency: 2.4 GHz
Radio Range: Approximately 10 Meters
Note: Communication with Multiple Data Loggers at the Same Time
Sampling Rate 1 Second to 12 Hours
Data Storage Capacity Approximately 1 Million Total Readings
Display Type: High Contrast OLED (Organic Light-Emitting Diode)
Resolution: 96 x 64 pixels
Display Area: 22.14 mm x 15.42mm
Fast Response Time: <10 µs
Wide Viewing Angle:>160°
Alarms None
LEDs Blue: Recording Indicator
Red: Alarm Indicator
Yellow: Battery Charge Indicator
Power Supply Rechargeable Lithium Polymer Battery (260mAh or 900mAh)
(USB Connection to PC Recharges Unit)
Battery Life 2-3 Months (Sampling Rate: 1 Minute)
Operating Mode Push Button Start/Stop
Storage Conditions Temperature: 5°C to 45°C
Humidity: 10 to 95% RH, non-condensing
Enclosure Poly Carbonate (Waterproof Version is Encapsulated)
Media Air and Various Liquids (Waterproof Version)
Standards Compliance RoHS/WEEE
Software Compatible Desktop: Windows 10, 8, 7, Vista and XP
App: Android 4.4+, iPhone 4S+, iPad 3+
NOTE: Not Compatible with iOS 9.X at this Time
Dimensions 260mAh Battery Version: 57mm x 35mm x 17mm
900mAh Battery Version: 57mm x 35mm x 25mm
Weight Standard 260mAh Battery Version: 27 grams
Standard 900mAh Battery Version: 43 grams
Waterproof 260 mAh Version: 36 grams
Waterproof 900 mAh Version: 62 grams
