- Internal Sensors for 3-Axis Acceleration, Air Pressure, Light, Humidity and Temperature
- Records in Range of ±15g/±200g and -20°C to 65°C Temperature Range
- Stores Over 2,000,000 Measured Values, Which is Sufficient for more than 1,000 Shocks and Jolt Events
- Rechargeable 260 mAh Lithium Polymer Battery
- Data from any number of loggers can be merged synchronously into a single Data Record
- Made in Switzerland, Swiss Made
Includes USB Cable, Mounting Screws, and Quick Start Guide. MSR Dashboard Software Available as a Free Download

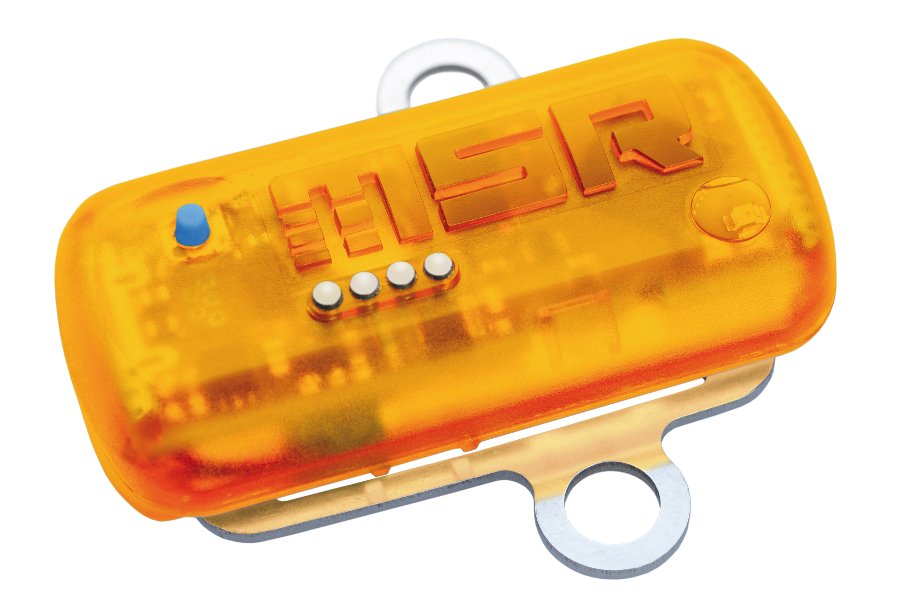

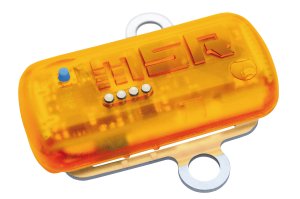

MSR175 Shock Air Pressure Light Humidity and Temperature Data Recorder Specifications
Measured Parameters | 3-Axis Acceleration Air Pressure Light Humidity Temperature |
Acceleration | Number of Sensors: 2 Measurement Range: ±15g and ±200g Accuracy (±15g): ±0.15g (25°C) Accuracy (±200g): ±2g @ 25°C Measurement Rate (±15g): 6,400 Samples per Second |
Air Pressure | Number of Sensors: 1 Measurement Range: 0 to 2000mbar absolute Accuracy: ±2.5mbar (25°C) Measurement Rate: 1 Sample per 10 Minutes |
Light | Number of Sensors: 1 Measurement Range: 0 to 65,000 lx Accuracy: 500 nm (Max Sensitivity) Measurement Rate: 1 Sample per 10 Minutes |
Humidity | Number of Sensors: 1 Measurement Range: 0 to 100% RH Accuracy (10 to 85%RH): ±2% (25°C) Accuracy (Other Ranges): ±4% (25°C) Measurement Rate: 1 Sample per 10 Minutes |
Temperature | Measurement Range: -20°C to 65°C; Accuracy: ±0.5°C (-10°C to 65°C) Measurement Rate: 10 Minutes |
Data Storage Capacity | Over 2 Million Total Recorded Readings |
Key | Start Measurement/Retrieve Status |
Color | Amber |
LEDs | Blue: Recording Indicator Red: Alarm Indicator Yellow: Battery Charge Indicator |
Power Supply | Rechargeable 260mAh Lithium Polymer Battery (USB Connection to PC recharges unit) |
Battery Life | 2-3 Months (Sampling Rate: 1 Minute) |
Enclosure | Encapsulated Poly Carbonate (PC) |
Standards Compliance | IP67, RoHS/WEEE |
Communications Interface | USB |
Storage Conditions | Temperature: 5°C to 45°C Humidity: 10 to 95% RH, non-condensing |
Operating Conditions | Temperature: -20°C to 65°C |
Software | MSR ShockViewer Automatic Report Generation, Detailed Analysis of Shock Event, Clearly Show and Organize Environmental Data |
Software Compatible | Windows 10, 8, 7, Vista and XP |
Weight | 28 grams |
Dimensions | 47mm x 16mm x 54mm |
