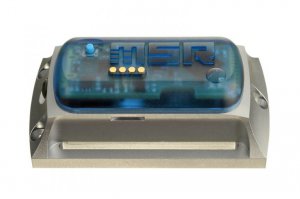

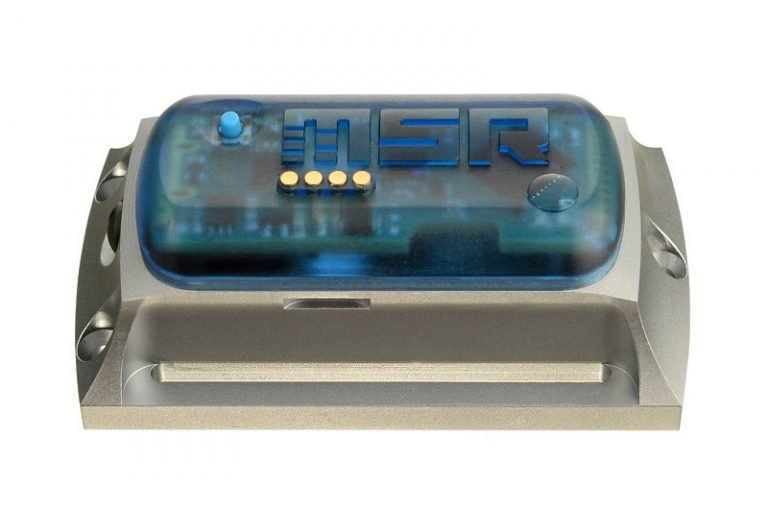

MSR165 Shock and Vibration Data Logger

MSR Electronics Data Recorder with Built-in 3-Axis Accelerometer with Rechargeable Lithium-Polymer Battery

Please open the Configurator tab to choose your desired options.

  • Capable of Making 1600 Acceleration (Shock, Vibrations) Measurements per Second in All 3 Axes
  • 32 Measurement Values are Recorded Even Before the Event Takes Place
  • Measurement Range of ±15g or ±200g in -20°C to 65°C Temperature Range
  • Rechargeable 900 mAh Lithium Battery or (2) LI-SOCI2 Replaceable Batteries Available
  • Also Records Temperature, Humidity, Air Pressure, Light and 4 Analog Input Signals
  • Made in Switzerland, Swiss Made Swiss Made - Made in Switzerland

Includes USB Cable, Mounting Screws, and Quick Start Guide. ShockViewer Add-On Available as a Free Download

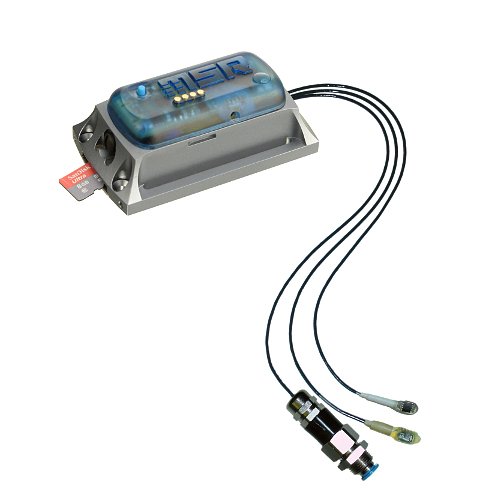

External Sensors (Temperature, Humidity, Pressure and Light) and 4 Analog Inputs Available.


MSR165: Data Logger for Shocks and Vibration

The MSR165 shock and vibration data logger is a robust mini data logger, capable of taking 1600 measurements per second for up to five years. It is ideal for measuring vibrations and monitoring shocks in the fields of transportation monitoring, fault diagnoses and load tests.

Over one billion measurement values

The MSR165 can monitor shocks up to ±15 g or up to ±200 g; 32 measured values are recorded even before the shock event takes place. The memory is capable of storing over two million measured values, which is sufficient for recording more than 10’000 shocks; the memory capacity of the logger can be extended to more than 1 billion measured values by using a microSD card. All the data can be quickly transferred to a computer via the USB port or microSD card.

MSR ShockViewer for analysing shocks and vibrations

The scope of delivery of the MSR165 includes the MSR PC Software for configuring and analysing the data. For an extensive analysis and graphical representation of the data recorded in shock mode and to automatically create reports, with the MSR165 Firmware Version 2.00 and later versions, the MSR ShockViewer analysis software, which is specifically tailored to the requirements of transportation monitoring, is at your disposal.

Ideal for long-term measurements

The MSR165 has extremely low power requirements. With the lithium-polymer battery (900 mAh) you can monitor shocks for up to six months, with replaceable Li-SOCl2 batteries even for up to five years. The MSR power pack, which can be ordered separately, is another option to increase the recording period: The autonomous charging station recharges the internal battery of the data logger during operation, allowing you to record data for up to six times longer.

The basic specification of the MSR165 data logger includes a high resolution 3-axis acceleration sensor with a working range of either ±15 g or ±200 g. In addition to the acceleration, you can also record temperature, humidity, air pressure, light and four analogue input signals.


MSR165 Shock and Vibration Data Logger Specifications

Measured Parameters 3-Axis Acceleration (Built-in Internal)
Temperature (Internal or External)
Relative Humidity (Internal or External)
Air Pressure (Internal or External)
Light (Internal)
Analog Input Signal (External)
Acceleration Sensor Type: 3-Axis Digital Accelerometer (Internal)
Sensor Resolution: 13-Bit
Measurement Rate: Up to 1600/s (±15%)
Range: ±15g or ±200g @ -20°C to 65°C
Accuracy (15g Sensor): ±0.15g @ 25°C
Accuracy (200g Sensor): ±2g (Up to 15g); ±5g (Up to 100g); ±10g (Up to 200g)
Temperature Range: -20°C to 65°C (Internal); -55°C to 125°C (External)
Accuracy: ±0.3°C (Internal);±2.0°C (External)
Humidity Range: 0 to 100% RH, -20°C to 65°C
Accuracy: ±2% (10 to 85% RH, 0°C to 40°C); ±4% (85 to 95% RH, 0°C to 40°C); ±0.5°C (0°C to 65°C)
Pressure Range: 0 to 2000 mbar Absolute or 0 to 14 Bar Absolute
Accuracy: ±2.5mbar (750 to 1100 mbar Absolute, 25C); ±0.5°C (0°C to 65°C)
Light Type: SFH 5712 Osram
Range: 0 to 65,000 lx
Accuracy: 100 to 65,000 lx, Max ±5% Linearity Error, Max Sensitivity at 500 nm
Resolution: 4 lx
Temperature Coefficient: 0°C to 50°C, <0.2%/K
Analog Input Number: 4 (Each Channel Configured for Separate Ranges)
Range: 0 to 3.0 Volts (Standard)**
Resolution: 12 Bits
Note: Additional Ranges Available
0 to 20mA, 4 to 20mA, 0.5V to 4.5V, 0 to 5V, 1V to 6V, 0 to 10V, 0 to 12V and 0 to 24V
Sampling Rate Acceleration: Up to 1600/s
Temperature: 1/s to 12 Hours
Humidity: 1/s to 12 Hours
Pressure: 1/s to 12 Hours
Light Level: 1/s to 12 Hours
Data Storage Capacity Approximately 2,000,000 Total Readings
Additional Storage Available with Standard SD (>4 GB) Card
Operating Conditions Temperature: -20°C to 65°C
Storage Conditions Temperature: 5°C to 45°C
Humidity: 10 to 95% RH, non-condensing
Color Blue, Anthracite
Operating Mode Push Button Start/Stop
Recording Mode Set Bookmark or Start and Stop Recording
Power Supply Lithium Polymer Battery (900mAh) (Recharge via USB Cable Atttached to Computer)
(2) Rechargeable Lithium-Thionyl Chloride (LI-SOCI2), 3.6 Volt, 7700 mAh (x 2), Up to 5 Years
Housing Enclosure Anodised Aluminum Case, PC, Encapsulated , Waterproof
Media Air, Various Liquids
Standards Compliance RoHS/WEEE, IP67
Software Compatible Windows 10, 8, 7, Vista and XP
Weight 69 grams
Dimensions 39mm x 23mm x 72mm
