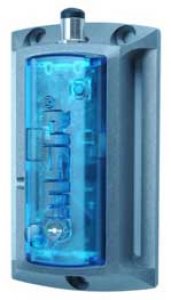

MSR160 Mini Datalogger w/ 4 Additional Analog Inputs

Category: MSR Dataloggers

>> 4 Integrated Analogue Inputs Sample up to 1000 per Second
>> Stores up to 2 Million Recorded Readings
>> 0 to 3.0 Volt Measurement Range for Analog Inputs (Additional Ranges Available: 0 to 20mA, 4 to 20mA, 0.5V to 4.5V, 0 to 5V, 1V to 6V, 0 to 10V, 0 to 12V and 0 to 24V by Special Order)
>> Each Analog Input Can Be Replaced with Internal or External Sensor
>> Internal Sensors Available for Temp, Humidity, Pressure & 3-Axis Acceleration
>> External Sensors Available for Temperature, Humidity & Air Pressure
>> USB Interface for Transferring Data to Computer
>> Waterproof Version Available
>> Anodised Aluminum Case with Rechargeable Lithium Polymer Battery
>> Optional Expansion Slot for MicroSD Card to Store 1 Billion Measurements Available
>> Includes MSR PC Software to Manage Settings and View, Edit, Export Measured Data

Data Logger w/ 4 Analog Inputs Specifications

Parameters Sensors with Analogue Output (Not Supplied) Can Be Connected for Measuring CO, Conductivity, CO2, pH, etc.
Additional Parameters >> Temperature (Internal or External Sensor)
>> Relative Humidity (Internal or External Sensor)
>> Air Pressure (Internal or External Sensor)
>> 3-Axis Acceleration (Internal Sensor Only)
Analogue Inputs Number: 4 (Each Channel Configured for Separate Ranges)
Range: 0 to 3 Volts (Standard)*
Resolution: 12 Bit
Note: Additional Ranges Available
0 to 20mA, 4 to 20mA, 0.5V to 4.5V, 0 to 5V, 1V to 6V, 0 to 10V, 0 to 12V and 0 to 24V

Range Temperature (Internal Sensor): -20°C to 65°C
Temperature (External Sensor): -55°C to 125°C
Humidity (w/ Temp Sensor): 0 to 100% RH, -20°C to 65°C
Pressure: 0 to 2000 mbar Absolute @ -20°C to 65°C
(optional: 0 to 14 bar absolute @ -20°C to 65°C)
3-Axis Acceleration: ±15g @ -20°C to 65°C
Accuracy Temperature (Internal Sensor): ±0.5°C (-10°C to 65°C)
Temperature (External Sensor): ±0.2°C (-55°C to 125°C)
Humidity: ±2% (10 to 85% RH, 0°C to 40°C); ±4% (85 to 95% RH, 0°C to 40°C)
Pressure (0 to 2000 mbar): ±2.5mbar (750 to 1100 mbar Absolute, 25°C)
Pressure (0 to 14 bar): ±50mbar (1 to 10 bar Absolute, 25°C)
3-Axis Acceleration: ±0.15g @ 25°C
Sampling Rate Analog Input: 1000/s to 12 Hours
Temperature: 1/s to 12 Hours
Humidity: 1/s to 12 Hours
Pressure: 1/s to 12 Hours
3-Axis Acceleration: 1/s to 12 Hours
Data Storage Capacity Approximately 2,000,000 Total Readings
1 Billion with Optional Standard microSD Card (>4 GB)
Operating Mode Push Button Start/Stop
Operating Conditions Temperature: -20°C to 65°C
Storage Conditions Temperature: 5°C to 45°C
Humidity: 10 to 95% RH, non-condensing
Housing Standard: Anodised Aluminum Polycarbonate Not Encapsulated
Waterproof: Anodised Aluminum Polycarbonate Encapsulated
Color Blue, Anthracite
Power Supply Rechargeable Lithium Polymer Battery (900 mAh)
>> USB Connection to PC Recharges Unit
Media Air, Various Liquids
Standards Compliance Standard: IP60, RoHS, WEEE
Waterproof: IP67, RoHS, WEEE
Software Compatible Windows 7, Vista, XP and 2000
Dimensions 39mm x 23mm x 72mm
Weight 80 grams
